Astryx controls

Astryx controls are the component family for notebook UIs in anylumino: the interactive building blocks for forms, filters, command panels, tables, status surfaces, and themes. They synchronize Python state through normal traitlets and compose inside Lumino layouts or other Astryx containers.

Useful appearance and behavior options are keyword-only constructor arguments with Python snake-case names. Unmodeled JSON-safe upstream options remain available through **props; React nodes, refs, render functions, and JavaScript-only test props are not promoted to the Python API. See the Astryx component documentation for the upstream component reference.

Notebook dashboard

A position monitor built only from Astryx controls. The button callback edits table rows and moves the progress bar from Python:

import anylumino as al
import anylumino.astryx as ax

positions = ax.Table(
    rows=position_rows,
    columns={"symbol": "Symbol", "qty": "Qty", "price": "Price", "pnl": "PnL"},
    row_key="symbol",
    selects="single",
    sortable=True,
    width="100%",
)
exposure = ax.ProgressBar(62, label="Gross exposure", variant="accent", value_label=True)

def mark_to_market(_button):
    for row in positions.rows:
        positions.update_row(row["symbol"], {"pnl": round(row["pnl"] * 1.1, 2)})

    exposure.value = min(exposure.value + 8, 100)

ax.Theme(
    {
        "header": ax.Stack(
            {
                "title": ax.Heading("Positions", level=3),
                "status": ax.StatusDot("Connected", variant="success", pulsing=True),
                "badge": ax.Badge("Paper", variant="info"),
            },
            direction="horizontal",
            align="center",
            gap=2,
        ),
        "summary": ax.MetadataList(
            [
                {"label": "Account", "value": "SIM-001"},
                {"label": "Venue", "value": "XNAS"},
                {"label": "Updated", "value": "14:30"},
            ],
            columns="multi",
        ),
        "exposure": exposure,
        "actions": ax.Stack(
            {
                "mark": ax.Button("Mark to market", variant="primary", callbacks=[mark_to_market]),
                "flatten": ax.Button("Flatten", variant="ghost"),
            },
            direction="horizontal",
            gap=2,
        ),
        "positions": positions,
    },
    gap=3,
)

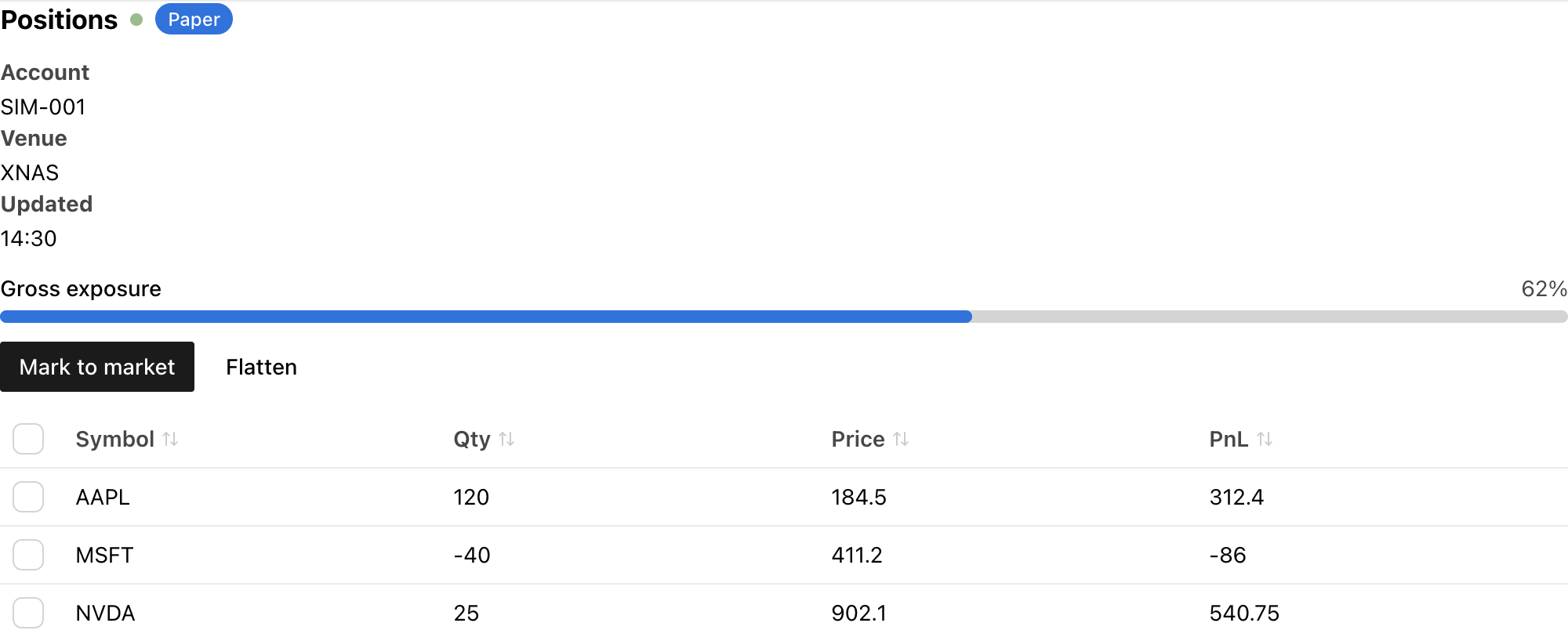

Notebook dashboard example rendered in JupyterLab

Component groups

The groups below follow how a notebook UI is put together: composition first, then content, inputs, actions, feedback, overlays, and data. Every class lives in the anylumino.astryx namespace; the module in parentheses is where its API reference page is.

GroupUse forComponents
Foundation and theme (base)Define a shared brand, theme a subtree, or wrap an Astryx component that has no Python class yetWidget, Component, Brand, BuiltTheme, Theme
Layout panels (layout)Structure a notebook UI with the keyed Lumino child API: tabs, one-at-a-time panels, collapsible sections, scrolling, resizable panes, reflowTabPanel, StackedPanel, AccordionPanel, ScrollBox, SplitPanel, ResponsivePanel
Layout containers (surfaces)Arrange content inside a panel or a notebook outputStack, Grid, Center, Section, Card, ClickableCard, SelectableCard, AspectRatio, Divider, Collapsible, Carousel
Typography and content (inputs, data)Headings, body copy, rendered Markdown, code, links, avatars, and small semantic contentText, Heading, Markdown, Code, CodeBlock, Blockquote, Kbd, Link, Citation, Timestamp, Thumbnail, Avatar, AvatarGroup, Icon
Forms and direct inputs (inputs, surfaces)Direct value entry and form compositionFormLayout, Field, FieldStatus, InputGroup, TextInput, TextArea, NumberInput, Slider, LogSlider, SelectionSlider, Checkbox, Switch, ToggleButton, ToggleButtonGroup, DateInput, DateRangeInput, DateTimeInput, TimeInput, Calendar, FileInput
Selection and search (inputs, surfaces)Choose from predefined options or searchable sourcesSelector, MultiSelector, SegmentedControl, RadioList, CheckboxList, Typeahead, Tokenizer, PowerSearch
Actions and menus (inputs, surfaces)Command surfaces and button-like interactionsButton, IconButton, ButtonGroup, Toolbar, DropdownMenu, ContextMenu, MoreMenu, CommandPalette
Feedback and status (data)Show state, progress, loading placeholders, or empty resultsBadge, StatusDot, ProgressBar, Spinner, Skeleton, Token, Banner, EmptyState
Overlays and previews (surfaces)Notebook-safe contextual surfaces; dialogs render inline by default so they stay in the output areaTooltip, HoverCard, Popover, Overlay, Lightbox, Dialog, AlertDialog
Navigation and data (surfaces, data)Structured navigation and data-heavy notebook viewsBreadcrumbs, TabList, List, MetadataList, Outline, TreeList, Pagination, Table

Layout panels

The layout panels mirror the Lumino layout widgets with the same keyed child API, so select_key, add_widget, and remove_widget work the same way while rendering with Astryx styling:

tabs = ax.TabPanel({"orders": orders, "fills": fills, "chart": figure}, size="sm")
tabs.select_key("fills")

workspace = ax.SplitPanel(
    {"controls": controls, "workspace": tabs},
    sizes=[0.3, 0.7],
    height=480,
)

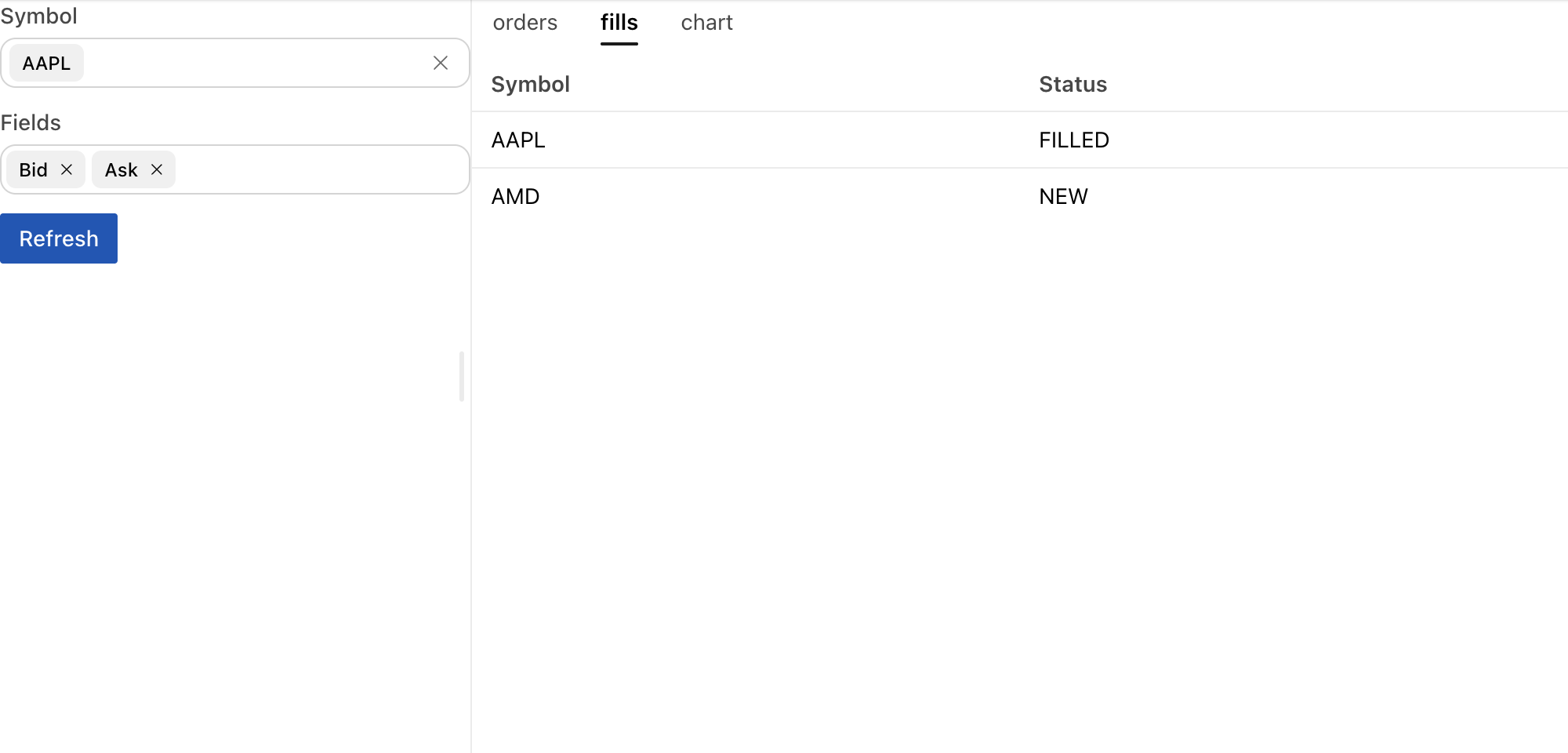

Layout panels example rendered in JupyterLab

TabPanel and StackedPanel mount a child the first time it is shown and keep it mounted, hidden, afterwards, so a Plotly figure keeps its state across tab switches. SplitPanel syncs drags back to its sizes trait as fractions.

Form controls

Input widgets expose a synced .value trait. FormLayout stacks them with consistent label spacing:

import anylumino as al
import anylumino.astryx as ax

order_form = ax.FormLayout(
    {
        "symbol": ax.TextInput(value="AAPL", label="Symbol"),
        "quantity": ax.NumberInput(value=100, label="Quantity", min=1),
        "limit": ax.Slider(184.5, label="Limit price", min=150, max=220, step=0.5, value_display="text"),
        "side": ax.SegmentedControl(
            ["Buy", "Sell"],
            value="Buy",
            label="Side",
        ),
        "routing": ax.Selector(
            ["Smart", "Primary", "Dark"],
            value="Smart",
            label="Routing",
        ),
        "urgent": ax.Checkbox(value=False, label="Urgent"),
    }
)

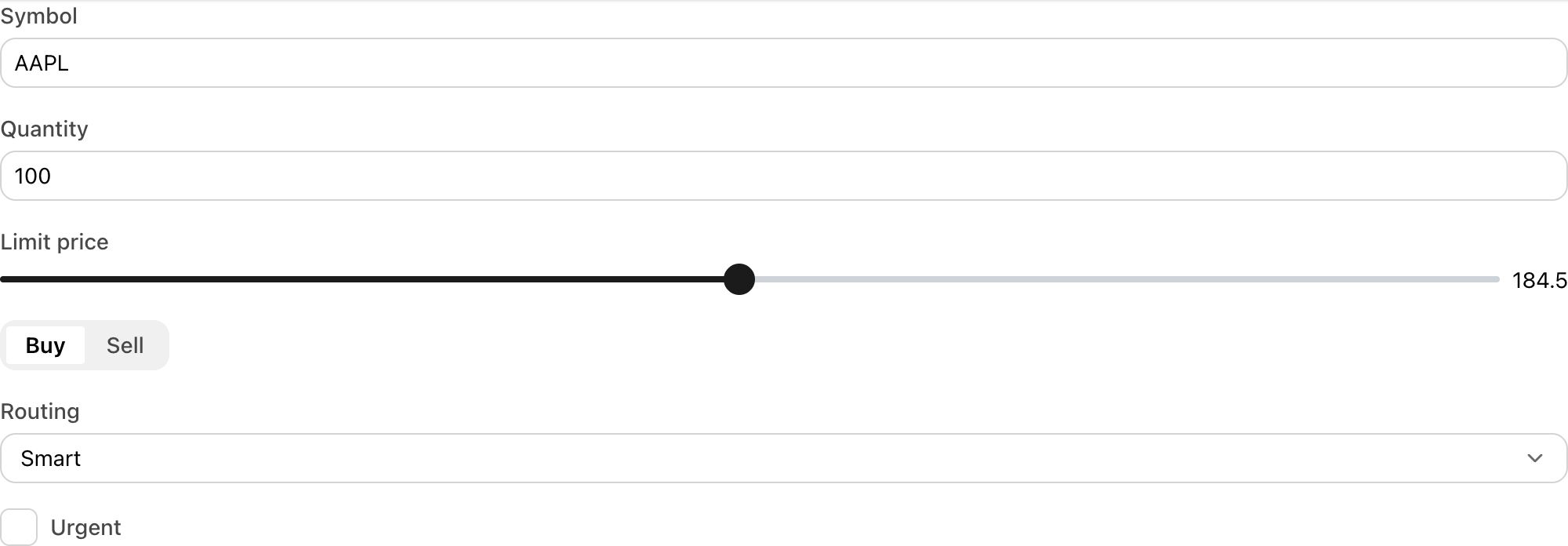

Form controls example rendered in JupyterLab

Use .value to read synchronized state:

order_form["symbol"].value
order_form["quantity"].value

Use observe(..., names="value") when another widget should react to edits. Assigning the trait from Python fires the same observer as typing in the notebook:

status = ax.Text("Waiting for a symbol")
symbol = ax.TextInput(value="AAPL", label="Symbol")

def on_symbol_change(change):
    status.text = f"Symbol: {change['new']}"

symbol.observe(on_symbol_change, names="value")
symbol.value = "MSFT"

ax.Stack({"symbol": symbol, "status": status}, gap=2)

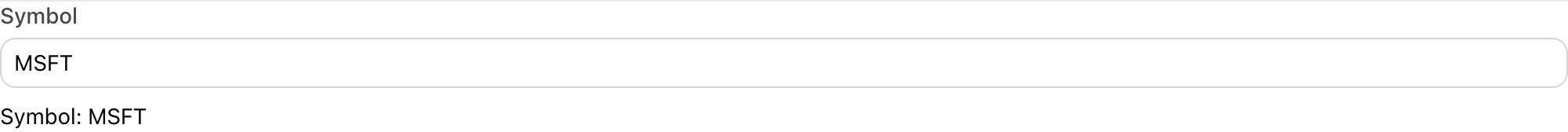

Form controls example rendered in JupyterLab

Selection controls

Astryx selection widgets cover small option sets, searchable option sets, and multi-value tokenized filters.

filters = ax.Stack(
    {
        "symbol": ax.Typeahead(
            ["AAPL", "MSFT", "NVDA"],
            value="AAPL",
            label="Symbol",
        ),
        "fields": ax.Tokenizer(
            ["Bid", "Ask", "Last", "Size"],
            value=["Bid", "Ask"],
            label="Fields",
        ),
        "density": ax.SegmentedControl(
            ["Compact", "Standard", "Expanded"],
            value="Standard",
            label="Density",
        ),
        "metric": ax.Selector(
            ["Latency", "Volume", "Fills"],
            value="Latency",
            label="Metric",
        ),
    },
    gap=3,
)

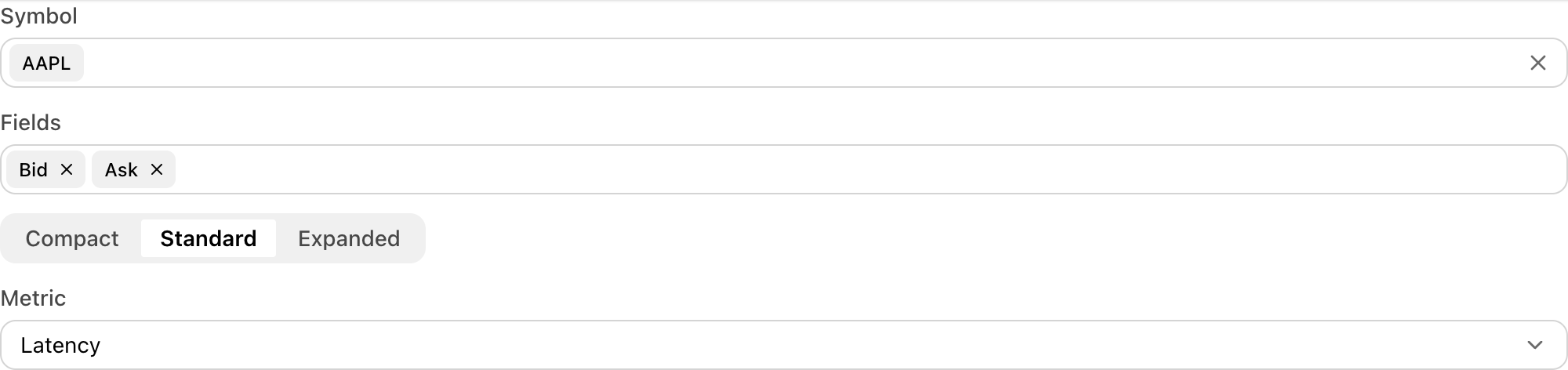

Selection controls example rendered in JupyterLab

Typeahead, Tokenizer, and CommandPalette currently use static search sources. Query text and open-state changes are sent as widget messages; selected item ids are synchronized through .value.

Buttons and actions

Button-like widgets use callbacks because a click is an event, not a persistent value.

status = ax.Text("Ready")

submit = ax.Button(
    "Submit",
    variant="primary",
    callbacks=[lambda _button: setattr(status, "text", "Submitted")],
)

actions = ax.CommandPalette(
    [
        {"id": "refresh", "label": "Refresh", "auxiliaryData": {"group": "Data"}},
        {"id": "export", "label": "Export CSV", "auxiliaryData": {"group": "Files"}},
    ],
    value="refresh",
    width=420,
)

ax.Stack({"status": status, "submit": submit, "actions": actions}, gap=3)

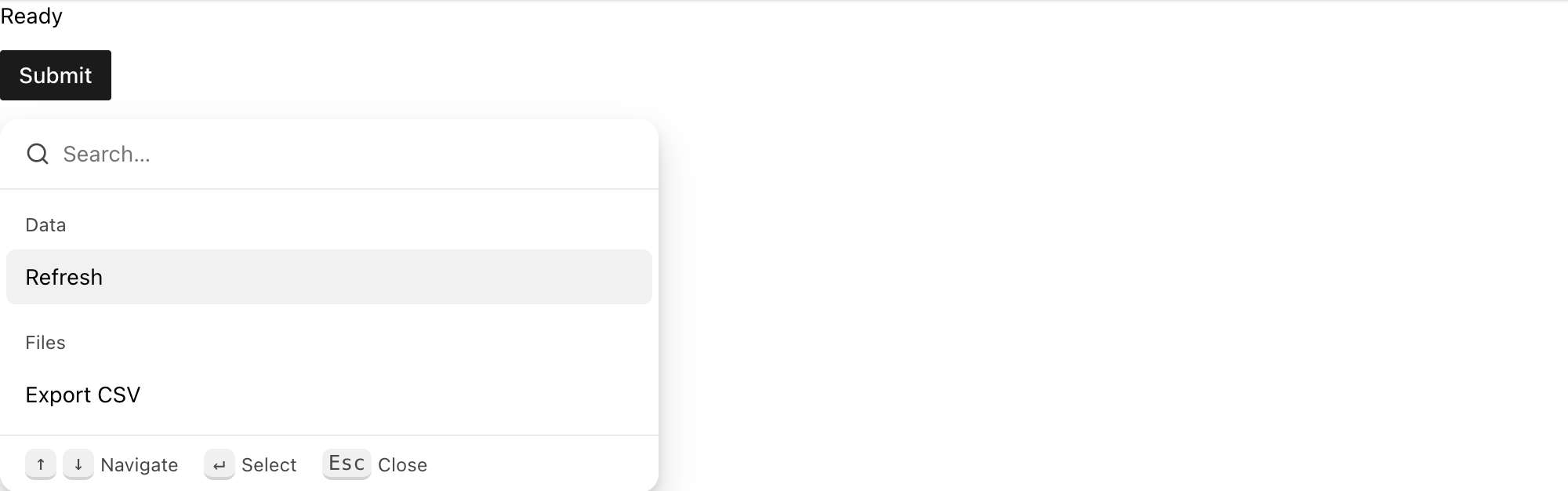

Buttons and actions example rendered in JupyterLab

Tables

Table is the data-grid control for notebook data views, with optional checkbox selection and sorting. Rows can be edited in place after display:

orders = ax.Table(
    rows=[
        {"order_id": "O-1", "symbol": "AAPL", "qty": 10, "status": "NEW"},
        {"order_id": "O-2", "symbol": "MSFT", "qty": 5, "status": "PARTIAL"},
    ],
    columns={"order_id": "Order", "symbol": "Symbol", "qty": "Qty", "status": "Status"},
    row_key="order_id",
    selects="multiple",
    sortable=True,
)

orders.append_row({"order_id": "O-3", "symbol": "NVDA", "qty": 1, "status": "NEW"})
orders.update_row("O-2", {"qty": 7, "status": "FILLED"})
orders.remove_row("O-1")

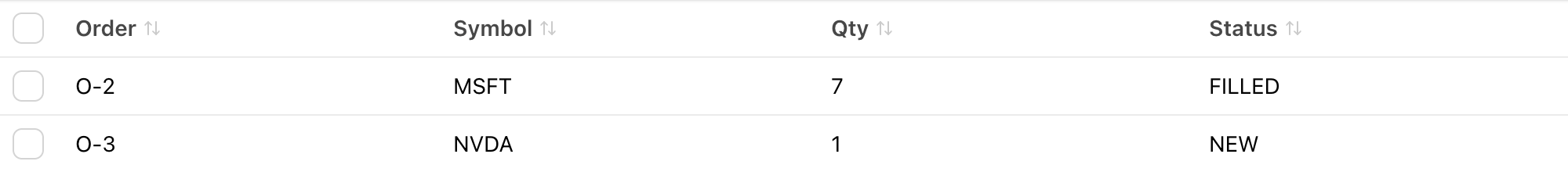

Tables example rendered in JupyterLab

Leave selects="" for no checkbox column, use selects="single" for one selected row, or use selects="multiple" for checkbox multi-selection. set_rows(rows) replaces the whole table with a new snapshot.

Theme identity

Use Brand and Theme to apply small shared design-token overrides to related controls. Each token takes a (light, dark) pair, and mode picks "light", "dark", or "system":

brand = ax.Brand(
    "desk",
    **{
        "color-accent": ("#0057b8", "#79b8ff"),
        "color-background-card": ("#f4f7fb", "#111827"),
        "radius-container": "12px",
    },
)

panel = ax.Theme(
    {
        "card": ax.Card(
            {
                "content": ax.Stack(
                    {
                        "header": ax.Stack(
                            {
                                "title": ax.Heading("Desk", level=3),
                                "badge": ax.Badge("Live", variant="success"),
                            },
                            direction="horizontal",
                            align="center",
                            gap=2,
                        ),
                        "symbol": ax.Typeahead(["AAPL", "MSFT", "NVDA"], value="AAPL", label="Symbol"),
                        "coverage": ax.ProgressBar(72, label="Coverage", variant="accent", value_label=True),
                        "run": ax.Button("Run", variant="primary"),
                    },
                    gap=3,
                ),
            },
            padding=4,
        ),
    },
    brand=brand,
    mode="light",
    gap=3,
)

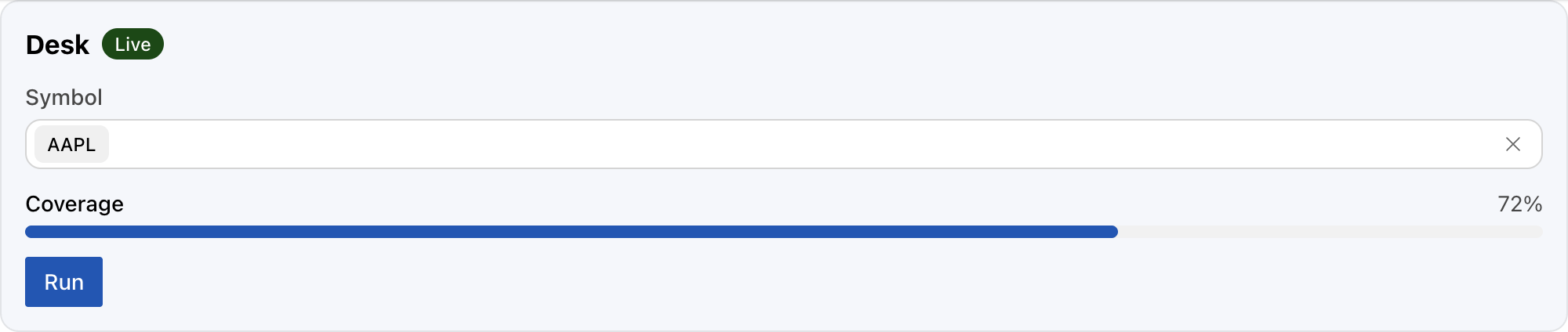

Theme identity example rendered in JupyterLab

Theme propagates the brand to nested Astryx children because each anywidget child is mounted in its own frontend root.

Use BuiltTheme when the theme has been built with npm run astryx -- theme build. Pass the generated CSS path or CSS text to BuiltTheme, then use the descriptor as the brand for Theme. The theme name must match the name in the Astryx TypeScript theme source.

Each Astryx widget is rendered by anywidget as its own frontend root in JupyterLab. Theme therefore propagates the selected brand and mode to nested Astryx children instead of relying only on a React context provider around the parent output. Runtime brands are converted with Astryx defineTheme() in the browser. Built themes inject their generated CSS into document.head once per unique theme/CSS pair and share that style element between notebook outputs with a reference count.

When testing theme changes, rebuild the frontend bundle before starting JupyterLab:

npm run build
uv run --no-sync jupyter lab . --port=8888 --no-browser --ServerApp.token='' --ServerApp.password=''

Then run notebooks/astryx_themes.py. A correct browser run shows one style[data-anylumino-astryx-built-theme-id] element for repeated uses of the same built theme. Restart JupyterLab or use a fresh browser task space after a frontend rebuild; otherwise JupyterLab can reuse an older anywidget ES module instance while developing locally.

Notebook-safe overlays

Dialog-style components default to inline rendering so they stay inside the Jupyter output area. Popover anchors to a trigger widget:

preview = ax.Dialog(
    ax.Text("Inline dialog content stays inside the notebook output."),
    open=True,
    width=360,
)

confirm = ax.AlertDialog(
    "Confirm action",
    "This inline preview uses the alert dialog surface.",
    action_label="Confirm",
)

details = ax.Popover(
    ax.Text("Last run finished at 14:30 with 6 fills."),
    ax.Button("Run details"),
    label="Run details",
)

ax.Stack({"preview": preview, "confirm": confirm, "details": details}, gap=3)

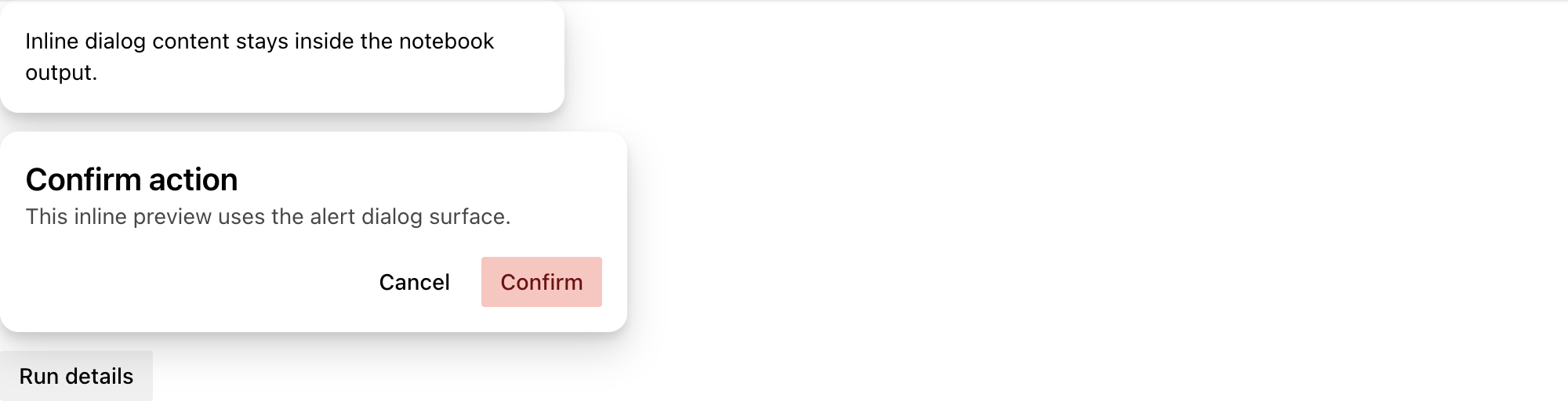

Notebook-safe overlays example rendered in JupyterLab

Use non-inline dialogs only after validating the surrounding notebook environment.
